Another piece of interesting news for 2018 … a GIGABYTE Aorus X470 Gaming 7 (AM4 Motherboard) was pictured at CES 2018.
We headed to the GIGABYTE Aorus booth at the 2018 International CES to check out the only motherboard based on AMD’s upcoming 400-series chipset visible in the entire show, the Aorus X470 Gaming 7. We snapped a lot of pictures. The first thing that caught our attention is the board’s updated styling, which resembles the one GIGABYTE introduced with its Intel Z370-series motherboards. The second thing of course, was two 32 Gb/s M.2 slots, confirming that AMD has indeed addressed 300-series chipset’s greatest shortcoming – lack of PCIe gen 3.0 general purpose lanes. Since the AM4 SoC puts out 4 gen 3.0 general purpose lanes of its own, which wired to one 32 Gb/s M.2 slot on 300-series motherboards, the new 400-series boards will have at least two of these slots, one wired to the AM4 SoC, and another to the chipset.

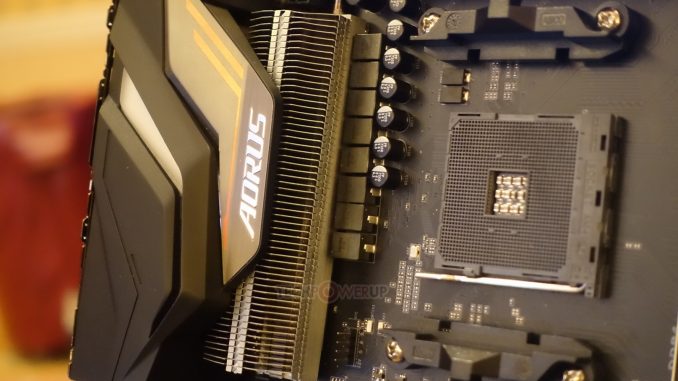

The Aorus X470 Gaming 7 could become the company’s flagship socket AM4 product based on AMD X470 chipset. It’s been designed as such. Built in the ATX form-factor, the board draws power from a combination of 24-pin ATX, 8-pin EPS, and 4-pin ATX power connectors. A 12-phase VRM supplies power to the AM4 SoC. It’s interesting to note that GIGABYTE chose some very high-current chokes for the chip’s main voltage domains. The VRM heatsinks, too, are elaborate aluminium fin-stack types, with the two heatsinks spreading heat over a heat pipe. Is this a telltale sign that certain Ryzen 2 parts could have >95W TDP? The CPU socket is wired to four DDR4 DIMM slots, two PCI-Express 3.0 x16 slots (x8/x8 when both are populated), and one of the two M.2 slots (we’re guessing the top M.2-22110 slot). Both it, and the bottom M.2-2280 slots have included heatsinks. Other expansion slots include an x16 (electrical x4) slot wired to the chipset, and two x1 slots, which are all gen 3.0.
