Thermaltake S500 TG – Features and Specifications
Thermaltake S500 Tempered Glass Edition Mid Tower ChassisS500 Tempered Glass Edition mid-tower chassis combines sophistication and elegance and is all built with a modern Steel case construction. The S500 is manufactured with one Tempered glass side panel. Two preinstalled standard fans, 140mm at the front and 120mm at the rear to enable outstanding ventilation. S500 TG incorporates a full modular design, vertical radiator & GPU mount, Patented Rotational PCI-E slots, and the support for 200mm fans. The flexibility is limitless for high-end components.
For storage this case has four drive trays with modular drive racks, delivering advanced storage capacity and great liquid cooling expansion. S500 TG is a great fit for users who are looking for a modern and stylish chassis.
~Thermaltake
Thermaltake S500 TG – Features

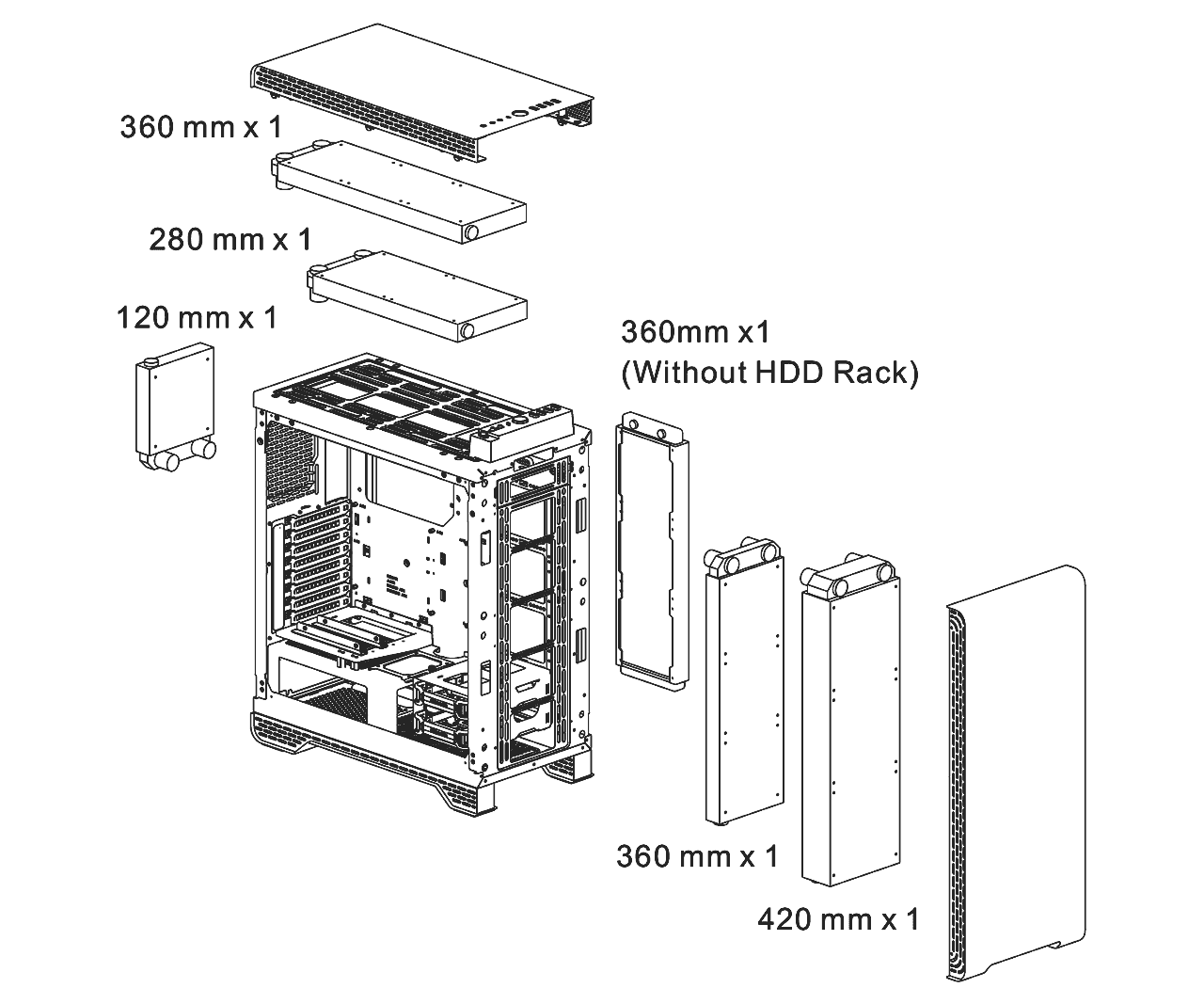

Radiator Support List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | ● |
| Top | ● | ● | ● | ● | ● | – |
| Rear | ● | – | – | – | – | – |
| Right | ● | ● | ● | ● | ● | ● |
| Bottom | – | – | – | – | – | – |
All-in-One Compatibility List
(Water 3.0 and Floe series)
| Perform | Pro | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|---|
| Front | – | – | – | – | – | – |
| Top | ● | ● | ● | ● | ● | ● |
| Rear | ● | ● | – | – | ● | – |
| Right | ● | ● | – | – | – | – |
| Bottom | – | – | – | – | – | – |

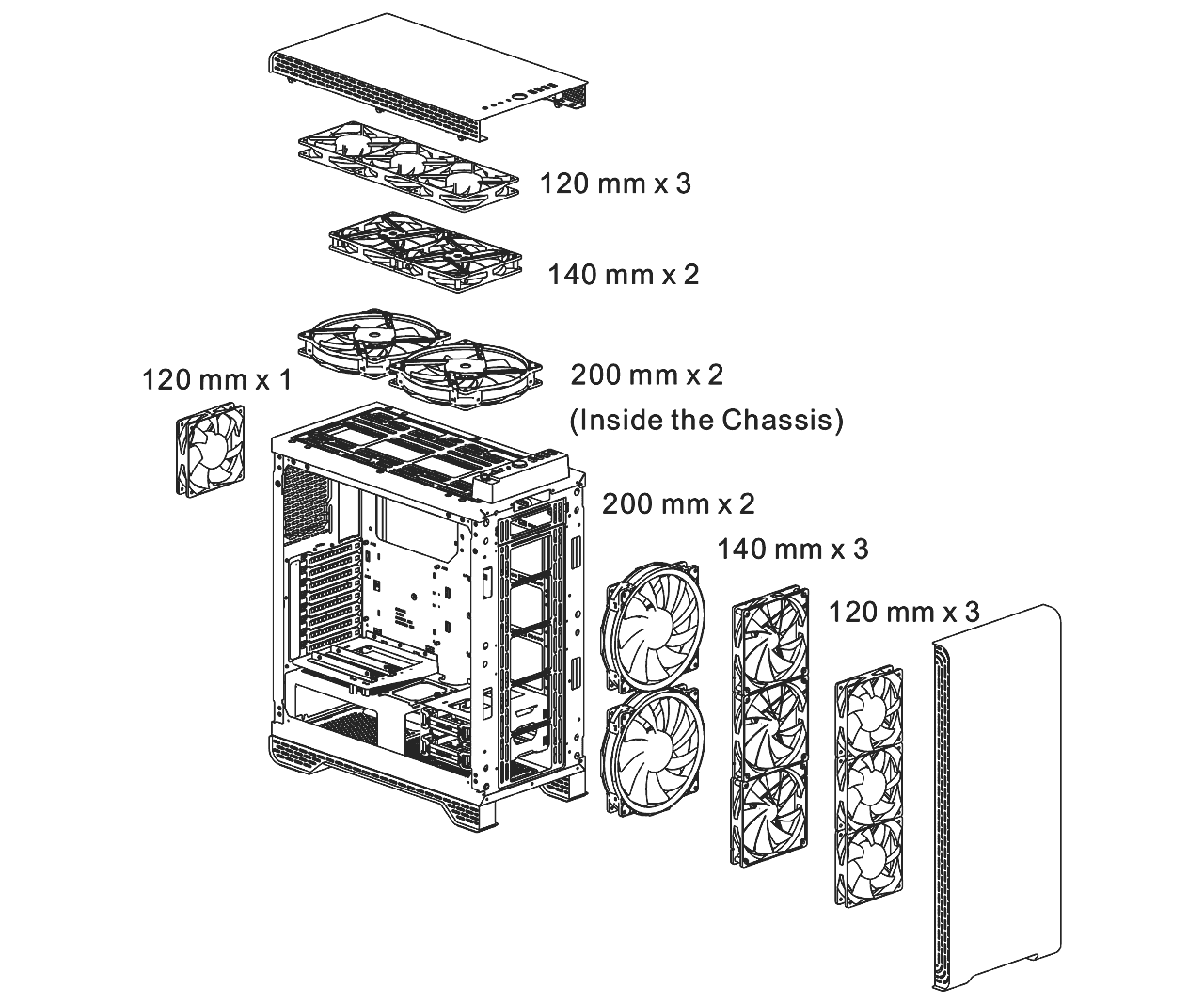

Fan Support List
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 3 | 2 |
| Top | 3 | 2 | 2 |
| Rear | 1 | – | – |
Thermaltake Compatible Fan
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | ● |
| LUNA FAN Series | ● | ● | ● |
| Riing FAN Series | ● | ● | ● |
Thermaltake S500 TG – Specifications
| P/N | CA-1O3-00M1WN-01 |
|---|---|
| SERIES | S Series |
| MODEL | S500 TG |
| CASE TYPE | Middle Tower |
| DIMENSION (H X W X D) | 565 x 240 x 500 mm (22.2 x 9.4 x 19.7 inch) |
| NET WEIGHT | 15.04 kg / 33.15 lbs. |
| SIDE PANEL | 4mm Tempered Glass x 1(Left) |
| COLOR | Exterior & Interior : Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16 dBA) Front (intake) : 140 x 140 x 25 mm fan (1000rpm, 20dBA) |
| DRIVE BAYS -ACCESSIBLE -HIDDEN |
|
| EXPANSION SLOTS | 8 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O PORT | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 3 x 140mm, 2 x 200mm Top: 3 x 120mm, 2 x 140mm, 2 x 200mm Rear: 1 x 120mm |
| RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 420mm Top: 1 x 280mm, 1 x 360mm Rear: 1 x 120mm Right: 1 x 360mm (Without HDD Rack) |
| CLEARANCE | CPU cooler height limitation: 172mm VGA length limitation: 282mm(With HDD Rack) 400mm(Without HDD Rack) PSU length limitation: 220mm |
Now that we have covered the features and specifications of the Thermaltake S500 TG chassis, let’s flip over to the next page of this review and take a closer look.
