Specifications

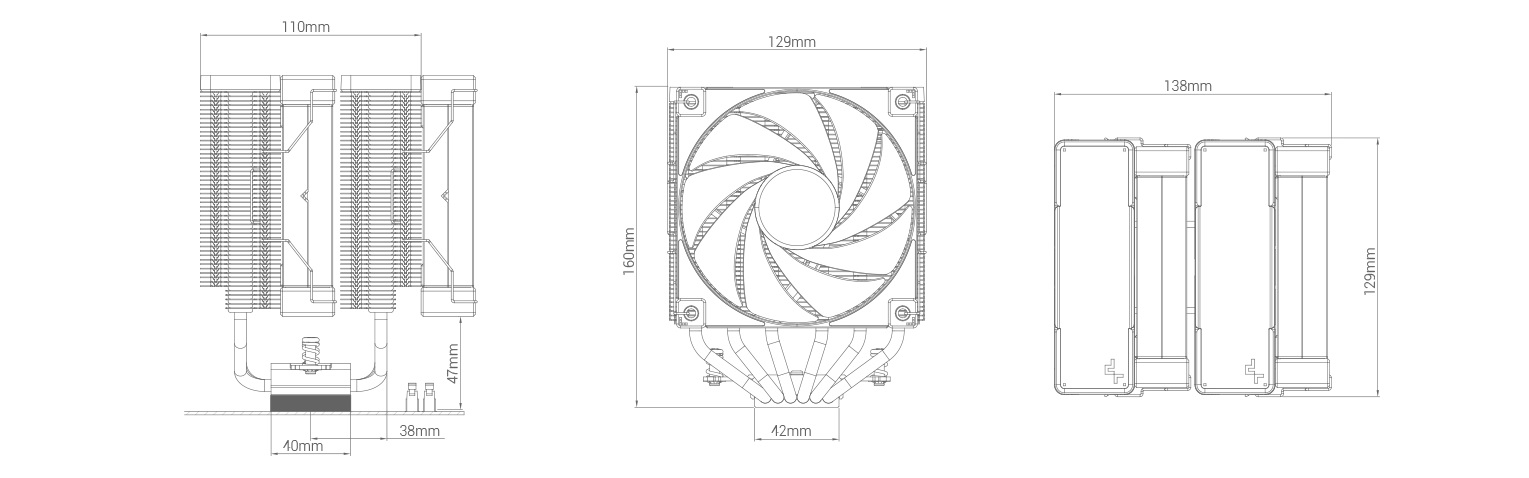

Product Dimensions | 129×138×160 mm |
Heatsink Dimensions | 127×110×157 mm |
Net Weight | 1456 g |
Heatpipe | Ø6 mm×6 pcs |
Fan Dimensions | 120×120×25 mm |
Fan Speed | 500~1850 RPM±10% |
Fan Airflow | 68.99 CFM |
Fan Air Pressure | 2.19 mmAq |
Fan Noise | ≤28 dB(A) |
Fan Connector | 4-pin PWM |
Bearing Type | Fluid Dynamic Bearing |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.12 A |
Fan Power Consumption | 1.44 W |
P/N | R-AK620-BKNNMT-G |
The cooler is 160mm tall, which means it will fit nearly every ATX case. It also supports RAM modules up to 47mm. If RAM is taller, then we can always move the fan a bit higher. With the very popular G.Skill RAM, it was no problem.
Package and its Contents
The AK620 WH cooler arrived in a retail package – a medium-size box that is well-described with product features and specifications. The cooler is well protected in foams, so we can be sure we will get it in perfect condition.
We will find everything we may need for the installation in the package, like a manual, thermal grease, screwdriver, and a set of mounting kits for all modern CPU sockets. The cooler supports all popular sockets, including the LGA1700 and AM5 sockets for the latest AMD and Intel processors.
