Features
16+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
DDR5 XMP & EXPO Support
DDR5 Memory with Protection Circuit
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

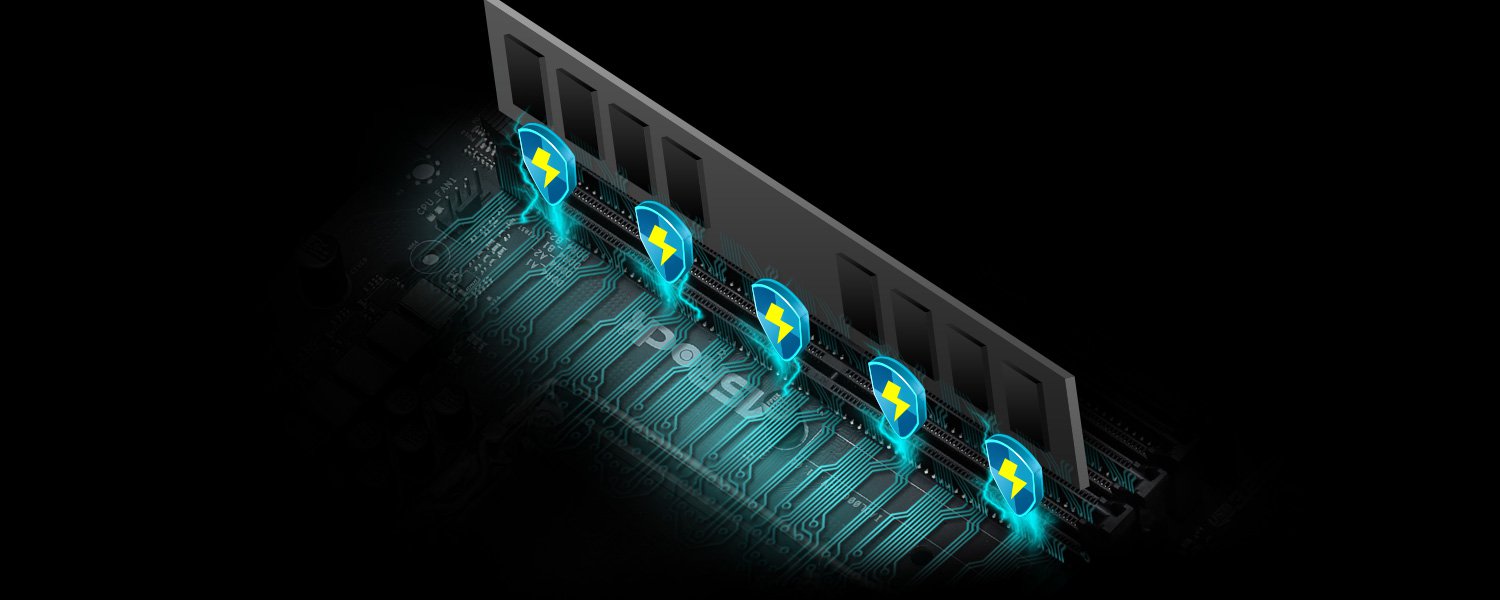

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

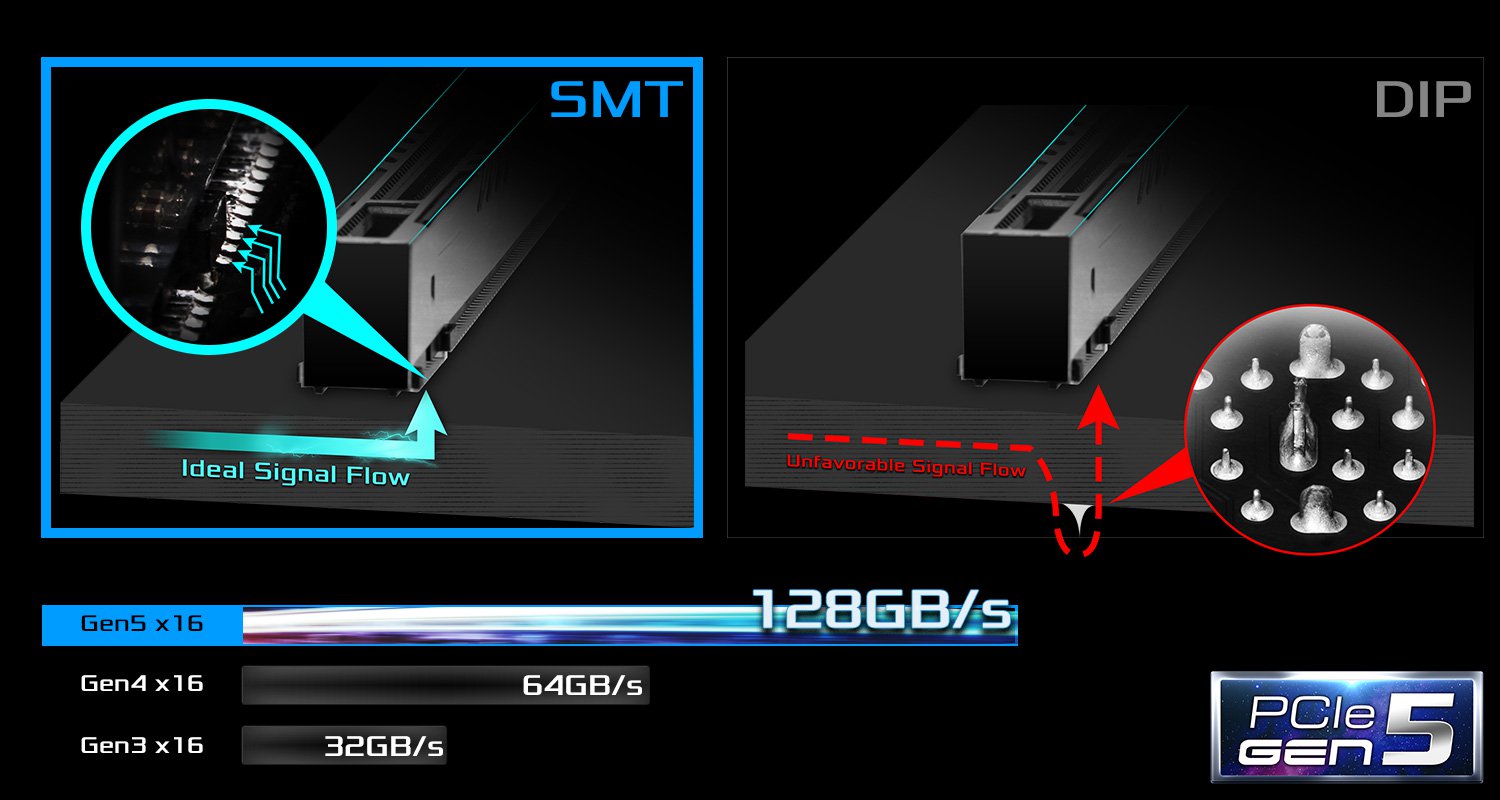

PCIe 5.0 + Surface-Mount Tech
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Nahimic Audio
ASRock Graphics Card Holder

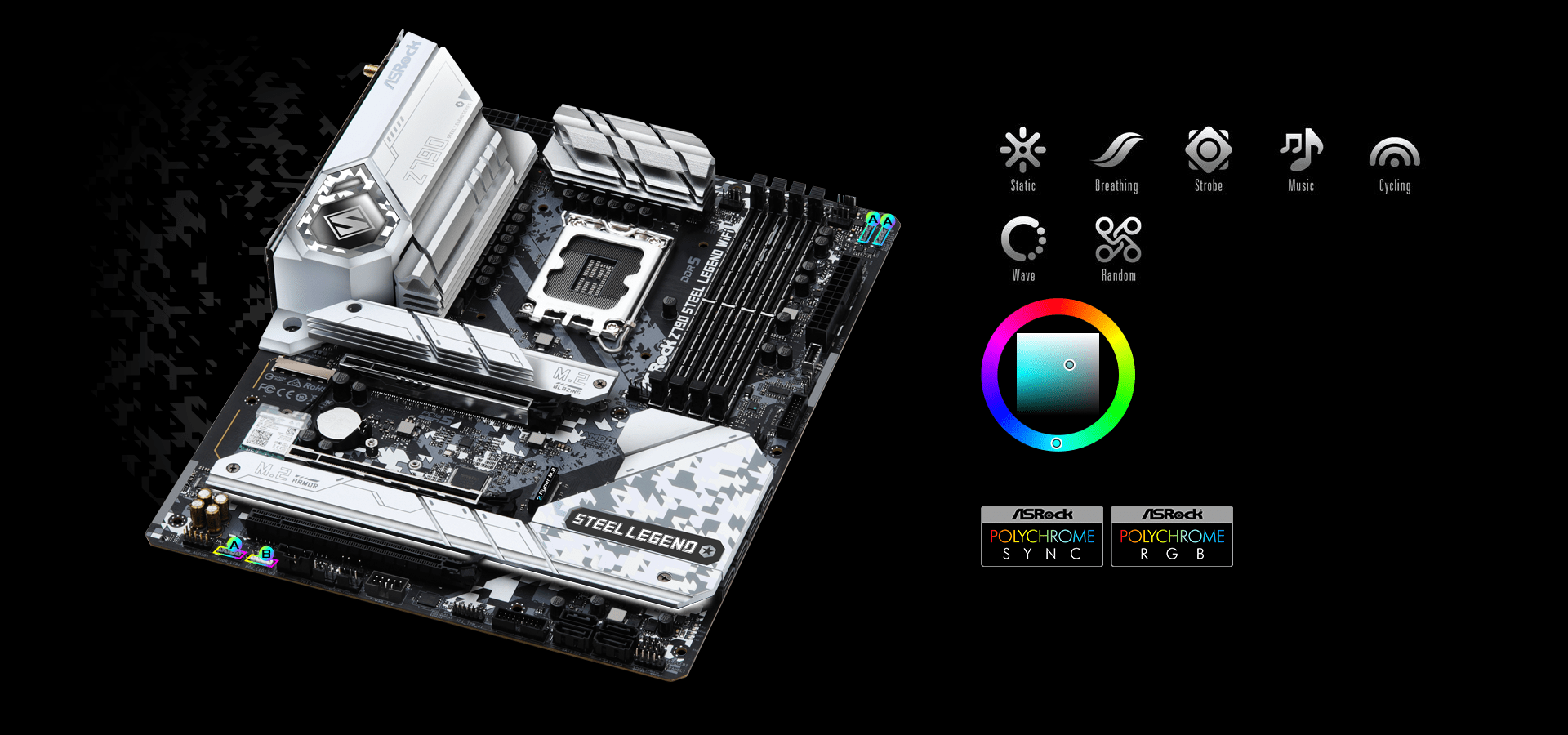

POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
High Speed M.2 Solution
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

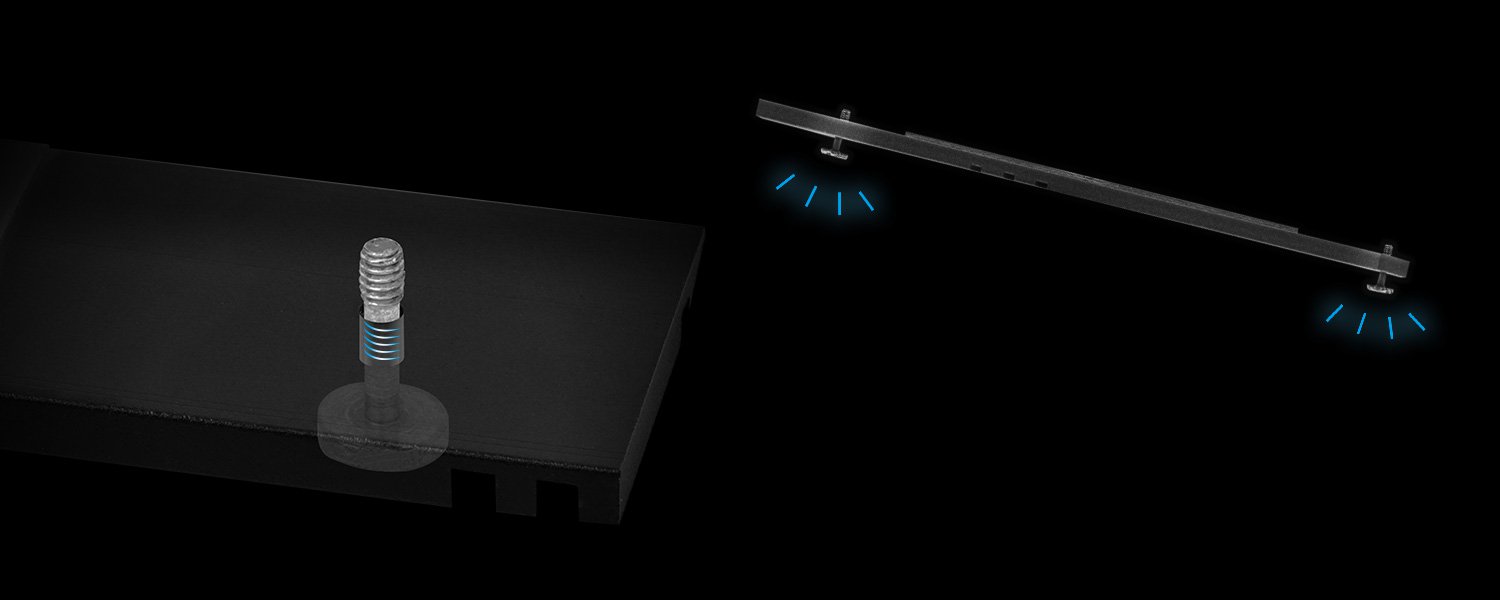

Tired of dropping screws or screws missing inside chassis?
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.
Dragon 2.5 Gb/s LAN

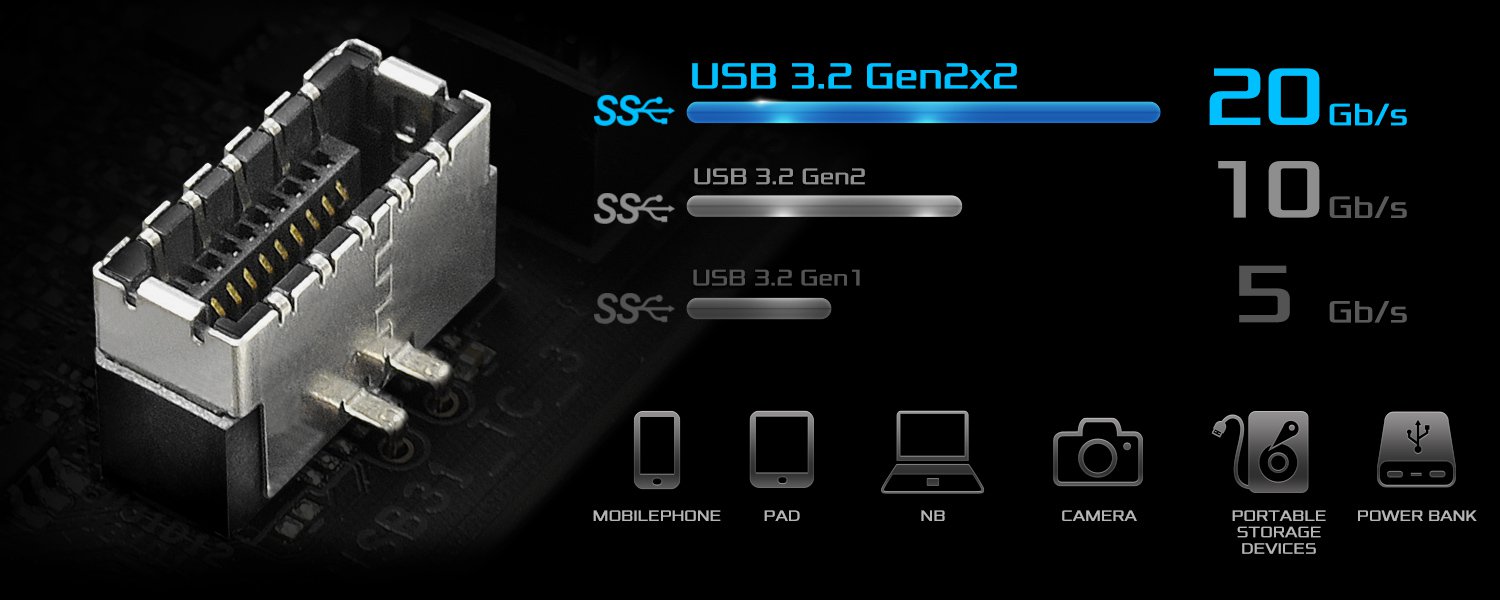

Front USB 3.2 Gen2x2 Type-C
Wireless Networking
Built in eDP Signal Connector
Supports ASRock 13.3” Side Panel kit
An eDP signal connector is built with ASRock selected motherboards and supports two functions simultaneously – power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3″ Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs – doubles productivity or entertainment.
