Test Bench
For our tests, we used our latest test rig, which is comprised of the following components.
| CPU | AMD RYZEN 7 3700X 8-Core 3.6 GHz (4.4 GHz Max Boost) Socket AM4 65W 100-100000071BOX Desktop Processor |
| Cooling | DEEPCOOL Castle 360EX |
| Motherboard | GIGABYTE X570 AORUS Pro Wi-Fi |
| Ram | G.SKILL Trident Z Royal Series 32GB (2 x 16GB) 288-Pin RGB DDR4 SDRAM DDR4 3000 (PC4 24000) Desktop Memory Model F4-3000C16D-32GTRS |
| PSU | Antec High Current Gamer 650W 80 PLUS Gold |
| GPU | EVGA GeForce RTX 2060 SUPER SC ULTRA GAMING |
| SSD |
SAMSUNG 970 EVO PLUS 500GB Internal Solid State Drive (SSD) MZ-V7S500B/AM
SABRENT 1TB Rocket NVMe PCIe 4.0 M.2 2280 Internal SSD Maximum Performance Solid State Drive |
CPU-Z
Here is some additional information about our testing rig using CPU-Z.

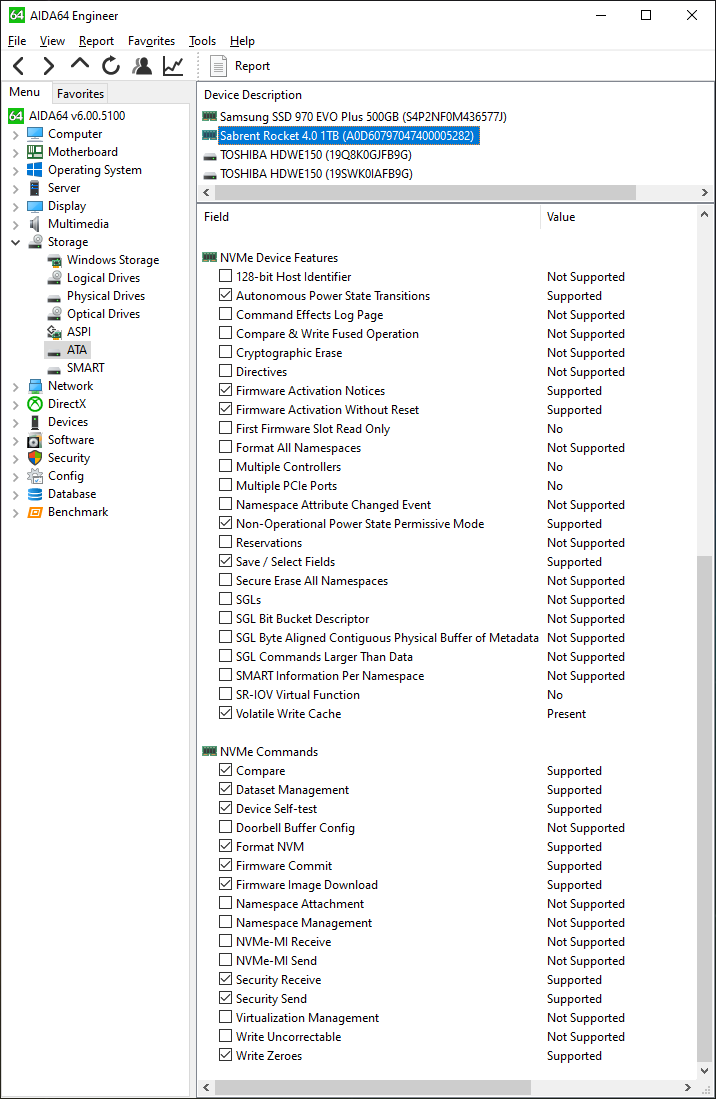

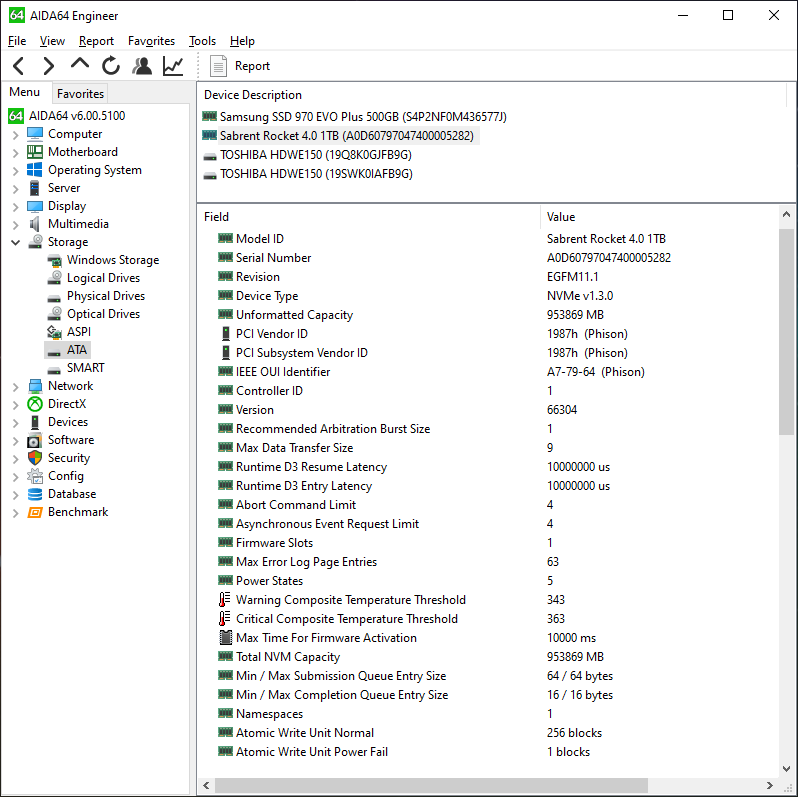

AIDA64 Disk Information
Here is some technical information about our SSD using the AIDA64 software.

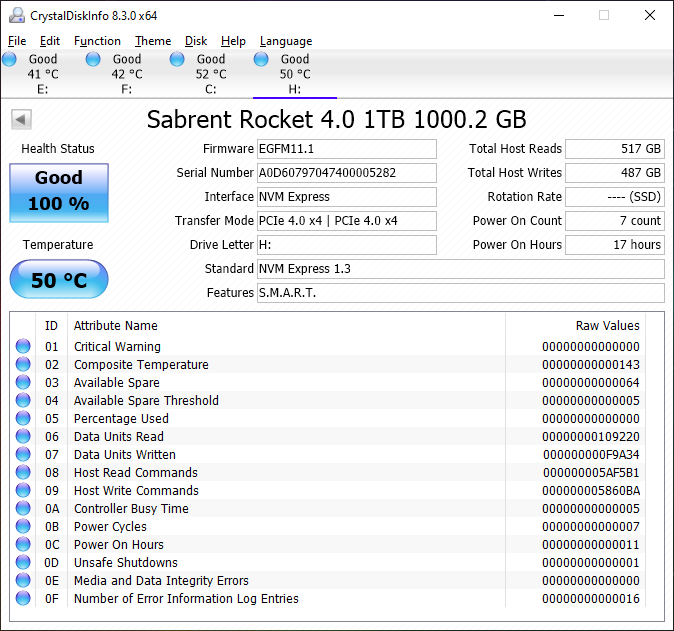

CrystalDiskInfo
Here is some additional technical information about our SSD using the CrystalDiskInfo software.
CrystalDiskMark
CrystalDiskMark is a disk benchmark software.It measure sequential reads/writes speed,measure random 512KB, 4KB, 4KB (Queue Depth=32) reads/writes speed, select test data (Random, 0Fill, 1Fill), provide theme support and Multi-Language support.
As you can clearly see, the SABRENT drive leaves the SAMSUNG drive in the dust in both Read (30% Increase) and Write (24% increase) speeds!
ATTO Disk Benchmark
ATTO has created a widely-accepted Disk Benchmark freeware software to help measure storage system performance. As one of the top tools utilized in the industry, Disk Benchmark identifies performance in hard drives, solid state drives, RAID arrays as well as the host connection to attached storage.
We find similar results in this testing which shows that the SABRENT drive leads the SAMSUNG drive in both Read (24% Increase) and Write (23% increase) speeds!
Anvil Storage
Anvil’s Storage Utilities is a powerful tool that was designed in order to provide you with a simple means of assessing the read and writer performance of your Solid State Drive or Hard Disk Drive.
Again, with the results in this testing which shows that the SABRENT drive leads the SAMSUNG drive in both Read (15% Increase) and Write (13% increase) speeds as well as an increase of 14% in the overall score. And that is a wrap for the testing of this drive.
Wow, what a product! Let’s head over to the next page and go over our final though thoughts in the conclusion of our review.
