Test Setup & Benchmark Methodology
For our tests, we used a test rig which includes the GIGABYTE X570 AORUS Pro Wi-Fi motherboard, along with an AMD Ryzen 7 3700X at default clock speed of 3.6GHz (turbo boost 4.4GHz), as well as 32GB (2 x 16GB) of G.Skill Trident Z Royal RGB DDR4-3000 ram in dual channel mode. The NVIDIA drivers that were used were version 436.02. The latest BIOS available at the time of testing for the motherboard was also used (F9c). We will be testing the 3D performance using the latest benchmarking suites widely available to everyone.
| CPU | AMD RYZEN 7 3700X 8-Core 3.6 GHz (4.4 GHz Max Boost) Socket AM4 65W 100-100000071BOX Desktop Processor |
| Cooling | DEEPCOOL Castle 360EX |
| Motherboard | GIGABYTE X570 AORUS Pro Wi-Fi |
| Ram | G.SKILL Trident Z Royal Series 32GB (2 x 16GB) 288-Pin RGB DDR4 SDRAM DDR4 3000 (PC4 24000) Desktop Memory Model F4-3000C16D-32GTRS |
| XMP profiles | Timing 16-18-18-38, CAS Latency 16, Voltage 1.35V |
| SSD/HDD | SAMSUNG 970 EVO PLUS 500GB Internal Solid State Drive (SSD) MZ-V7S500B/AM |
| PSU | Antec High Current Gamer 650W 80 PLUS Gold |
| VGA card | EVGA GeForce RTX 2060 SUPER SC ULTRA GAMING |
| Nvidia Drivers | Latest GeForce Drivers – WHQL |
| OS | Windows 10 v1903 |
CPU-Z Information
Take a look at some additional information about the testbed, obtained with CUPID’s system information and monitoring utility, CPU-Z (v1.89).

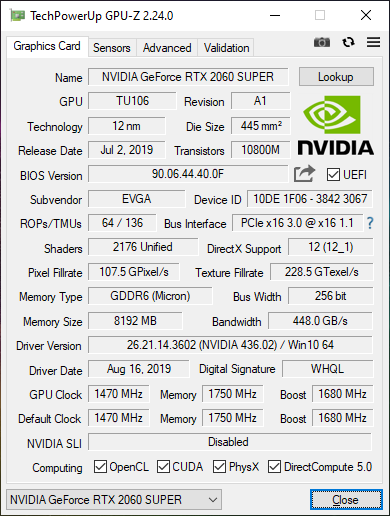

GPU-Z Information
Take a look at some additional information about the graphics card, obtained with TechPowerup’s GPU information and monitoring utility, GPU-Z (v2.24).
Alright, alright! Time for the all important testing results!
